MAN TGA/TGL/TGM/TGS/TGX Pressure Limiting Valve 81521016295 4750103330 Wabco
MAN TGA/TGL/TGM/TGS/TGX Pressure Limiting Valve 81521016295 4750103330 Wabco
Overview
Part Number: 81521016295
Description:

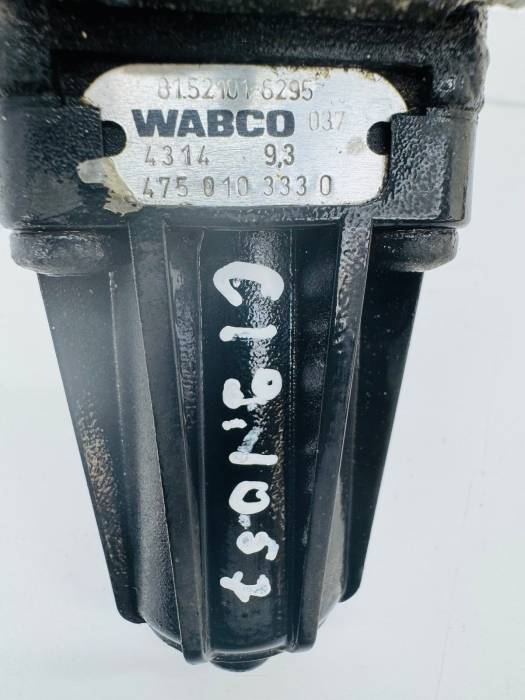

This listing is for a used genuine WABCO pressure limiting valve for MAN commercial vehicles. The OE plate on the unit clearly shows MAN 81.52101-6295 / 81521016295 and WABCO 475 010 333 0, confirming it as the correct pressure limiting valve used in the compressed air brake system. According to MAN/WABCO catalogues, this valve is fitted to MAN LE, TGL, TGM, TGA, TGS and TGX trucks as well as selected Neoplan buses across Euro 3, Euro 4, Euro 5 and early Euro 6 applications, where it regulates system pressure and protects downstream components.
The WABCO 4750103330 valve is designed for heavy-duty truck and bus air systems, with a maximum operating pressure of 20 bar and an outlet (delivered) pressure of approx. 9.3 bar at 12.5 bar inlet. It features a robust cast metal body with 2 x M22 x 1.5 threaded ports, two-bolt mounting (56 mm spacing) and a plastic dust cover. Typical installation is on the chassis or near the air compressor / reservoir within the service brake circuit.

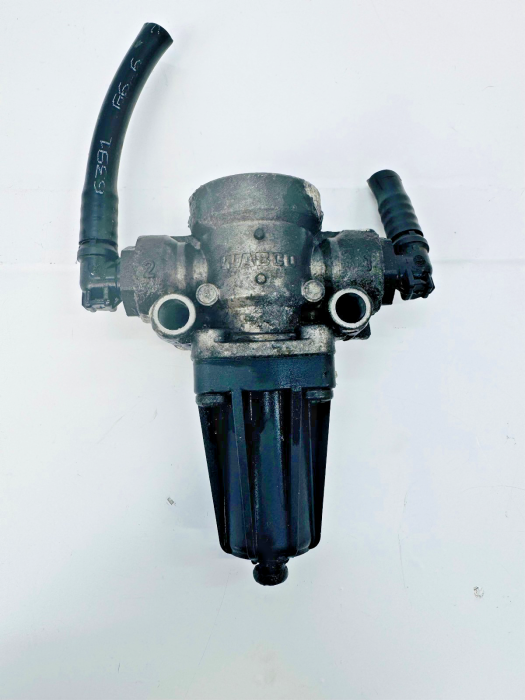

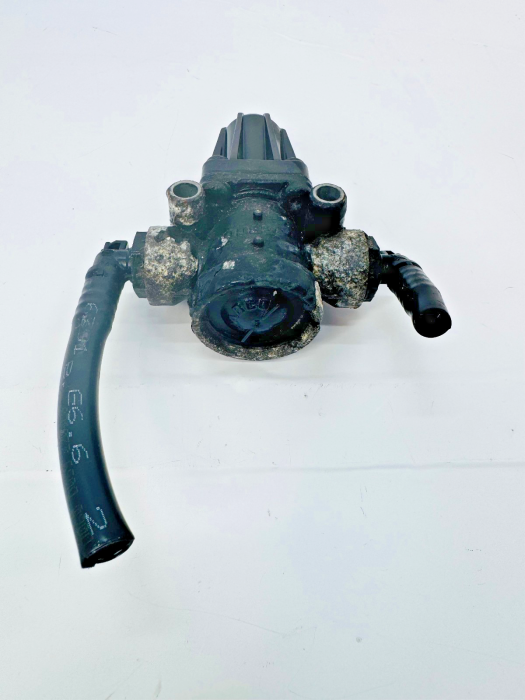

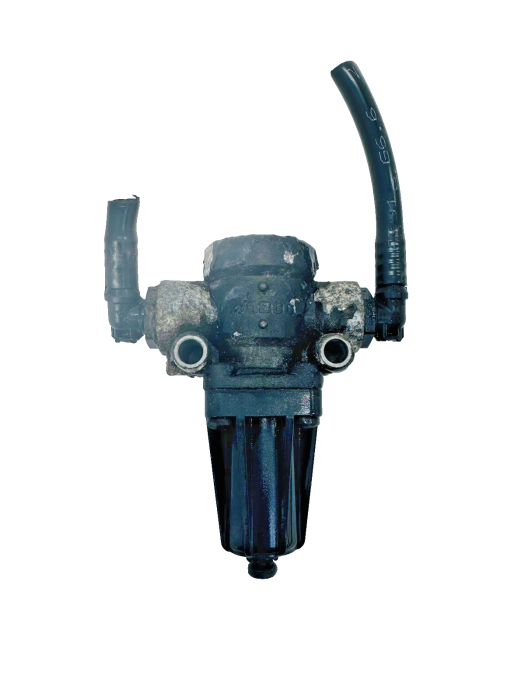

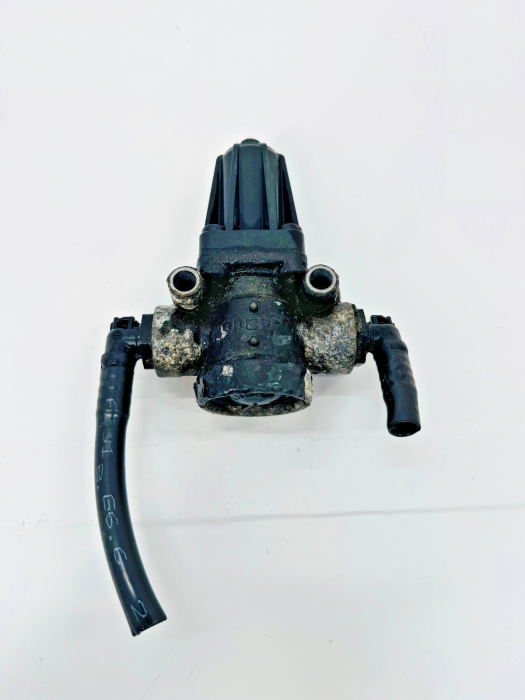

This particular unit was removed from a running vehicle and tested on the truck prior to dismantling to confirm correct function, with no leakage or regulation issues observed at the time. After removal it received a basic clean and visual inspection. There is cosmetic corrosion and dirt on the housing from normal operation, but no structural damage. Threads and ports are in usable condition; however, we recommend fitting new sealing rings and checking all lines during installation. The valve is supplied as photographed, including the used air hoses still attached; brackets, bolts and additional fittings are not included.
Compatibility should be confirmed against your existing part number before purchase. If your vehicle currently uses MAN 81.52101-6295 / 81521016295, WABCO 475 010 333 0 or recognised equivalents such as Cojali 2223160 or Diesel Technic 372016, this valve will normally be a direct replacement for MAN LE, TGL, TGM, TGA, TGS and TGX trucks and related Neoplan buses. Always ensure the technical specification and pressure settings match your original unit.
Shipping & Returns:
We ship across UK/EU with tracked services. Returns accepted within 30 days; buyer pays return postage. Please inspect upon arrival and message us with any concerns.
Why Buy From Us:
Genuine part, 3-month warranty, fast dispatch, secure packaging.
This listing is for a used genuine WABCO pressure limiting valve for MAN commercial vehicles. The OE plate on the unit clearly shows MAN 81.52101-6295 / 81521016295 and WABCO 475 010 333 0, confirming it as the correct pressure limiting valve used in the compressed air brake system. According to MAN/WABCO catalogues, this valve is fitted to MAN LE, TGL, TGM, TGA, TGS and TGX trucks as well as selected Neoplan buses across Euro 3, Euro 4, Euro 5 and early Euro 6 applications, where it regulates system pressure and protects downstream components.
The WABCO 4750103330 valve is designed for heavy-duty truck and bus air systems, with a maximum operating pressure of 20 bar and an outlet (delivered) pressure of approx. 9.3 bar at 12.5 bar inlet. It features a robust cast metal body with 2 x M22 x 1.5 threaded ports, two-bolt mounting (56 mm spacing) and a plastic dust cover. Typical installation is on the chassis or near the air compressor / reservoir within the service brake circuit.
This particular unit was removed from a running vehicle and tested on the truck prior to dismantling to confirm correct function, with no leakage or regulation issues observed at the time. After removal it received a basic clean and visual inspection. There is cosmetic corrosion and dirt on the housing from normal operation, but no structural damage. Threads and ports are in usable condition; however, we recommend fitting new sealing rings and checking all lines during installation. The valve is supplied as photographed, including the used air hoses still attached; brackets, bolts and additional fittings are not included.
Compatibility should be confirmed against your existing part number before purchase. If your vehicle currently uses MAN 81.52101-6295 / 81521016295, WABCO 475 010 333 0 or recognised equivalents such as Cojali 2223160 or Diesel Technic 372016, this valve will normally be a direct replacement for MAN LE, TGL, TGM, TGA, TGS and TGX trucks and related Neoplan buses. Always ensure the technical specification and pressure settings match your original unit.
Shipping & Returns:
We ship across UK/EU with tracked services. Returns accepted within 30 days; buyer pays return postage. Please inspect upon arrival and message us with any concerns.
Why Buy From Us:
Genuine part, 3-month warranty, fast dispatch, secure packaging.
Features
Weight | 0 kg |
Condition | Used |
Warranty Period | 3 months |
Manufacturer Part Number | 4750103330 |
Grade | B – used, working, cosmetic corrosion |
Reference OE/OEM Number | MAN 81.52101-6295, MAN 81521016295, NEOPLAN 81521016295 |
Brand | WABCO |
Type | Pressure limiting valve, air brake system |
Intended Use | Replacement Part |
Country of Origin | Germany |
Location | United Kingdom |
Material | Cast metal body, plastic dust cover |
Placement on Vehicle | Chassis mounted, air brake system |
Model Compatibility | MAN LE, TGL, TGM, TGA, TGS, TGX, Neoplan buses |
Colour | Black housing, silver label |
Other Part Numbers | WABCO 475 010 333 0, Cojali 2223160, Diesel Technic 372016 |
Features | Air pressure limiting valve, 20 bar max, 9.3 bar outlet |
Dimensions | Approx 139 x 85 x 55 mm body size |
Included | Valve with plastic cover and attached hoses |
Temperature range | -40°C to +80°C |
Max operating pressure | 20.0 bar |
Mounting | 2 x Ø8.6 mm bolt holes, 56 mm spacing |
Port Threads | 2 x M22 x 1.5 ports |
Part Number | 81521016295 |
Other Part Numbers 1 | ProVia 502262, Febi 81521016295 |
EAN | 4057875222606 |
Delivered Pressure | 9.3 bar at p1 = 12.5 bar |
