Volvo FH4/FM4 Fuel Filter Housing 21843947 21762764 22502421 23100150 D13 Euro 6 Other Air Intake & Fuel Delivery

Description:

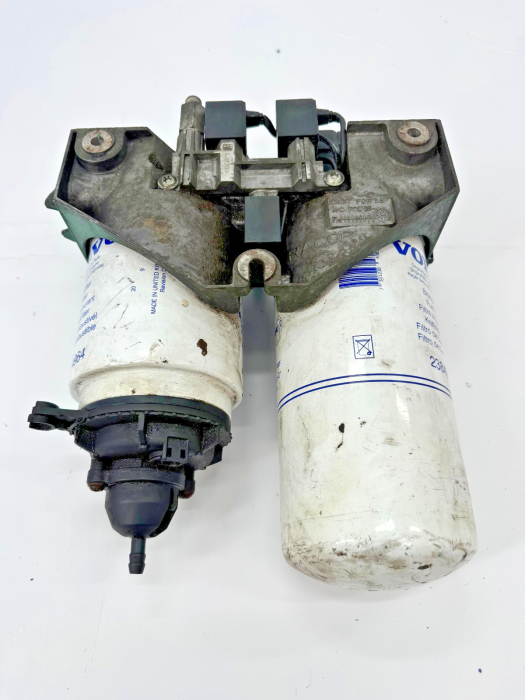

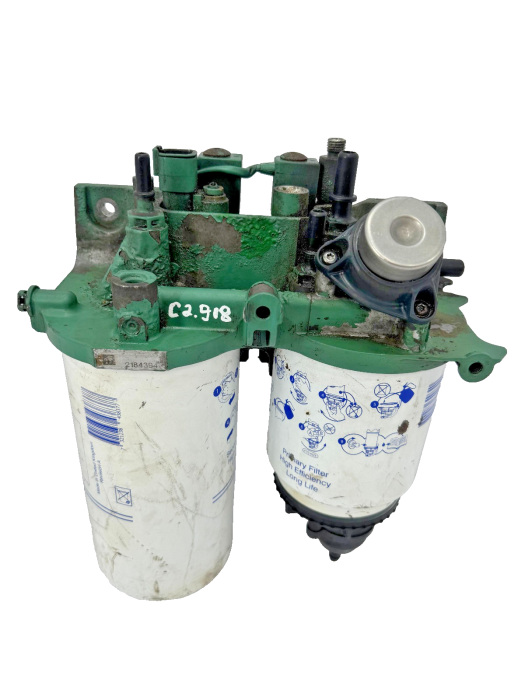

This listing is for a genuine Volvo diesel fuel filter housing assembly, part number 21843947, as used on Euro 6 Volvo FH4 and FM4 trucks equipped with the D13 engine. The unit integrates a dual fuel filter/water separator module with aluminium mounting bracket, Racor filter heads and plastic filter canisters, plus ports for sensors and fuel line connections. It replaces Volvo OE references 21762764, VOE21762764, VOE21843947, 22502421, 23100150, 22875037, 7421843947, 7422502421, 7421762764 and related numbers listed in Volvo and aftermarket catalogues.

Function & Application:
The housing mounts in the engine bay and performs primary and secondary filtration of diesel fuel, removing water and contaminants before fuel enters the high‑pressure system. It is designed specifically for Volvo D13 Euro 6 engines in FH4 and FM4 heavy trucks and includes a hand priming pump and water separation stage. Correct, clean filtration helps protect injectors and fuel pumps and supports reliable starting and performance.

Compatibility:
Confirmed applications from parts catalogues and aftermarket suppliers show this assembly fits Volvo FH4 and FM4 models with D13 Euro 6 engines. Cross‑reference numbers include 21762764, VOE21762764, VOE21843947, 22502421, 23100150, 22875037, 7421843947, 7422502421, 7421762764 and 21766617, among others. Always match your existing part number 21843947 or any of the listed equivalents and check the mounting layout and ports before purchase.

Condition & Testing:
This is a used original part in good working order. The housing was checked on the donor vehicle prior to dismantling; no visible leaks or cracks were present and the engine ran correctly with this unit installed. After removal the assembly received a basic external clean and visual inspection. Condition is graded B: normal operational wear, paint flaking and grime on the green housing, scuffs on the filter bodies and minor corrosion on fasteners, but all ports, threads and mounting points are sound. Used filter cartridges are included for reference but should be replaced with new elements during installation.

Technical Details:
• Brand: Volvo (OE), Racor filter system
• Part number: 21843947 (also VOE21843947, 7421843947)
• Other references: 21762764, VOE21762764, 22502421, 23100150, 22875037, 7422502421, 7421762764, 21766617, 7422502430
• Type: Diesel fuel filter housing / water separator module
• Application: Volvo FH4, FM4 with D13 Euro 6 engines
• Material: Aluminium main body with plastic filter bowls
• Approximate weight: 4.7 kg
• Features: Dual canister filtration, integrated water separation, hand priming pump, multiple inlet/outlet ports
• Country of origin: Volvo Sweden with Racor components manufactured in UK

Installation Notes:
Professional installation is recommended. The fuel system must be depressurised and thoroughly bled after fitting. Always install new genuine‑quality filter cartridges, O‑rings and sealing washers when replacing the housing. Check for leaks with the engine running and retighten connections to the manufacturer’s torque specifications. No coding or programming is normally required when refitting a like‑for‑like housing, but follow Volvo workshop procedures.

Warranty & Returns:
The part is supplied with a 3‑month warranty against mechanical failure under normal use. Please keep your invoice as proof of purchase. This is a used component; cosmetic wear and used filters are excluded from warranty.

Shipping & Returns:
We ship across UK/EU with tracked services. Returns accepted within 30 days; buyer pays return postage. Please inspect upon arrival and message us with any concerns.

Why Buy From Us:
Genuine part, 3-month warranty, fast dispatch, secure packaging.
