Volvo FH/FM A/C Air Conditioning Pressure Sensor 21065047 742106507 Front Used Air Flow Sensors

Description:

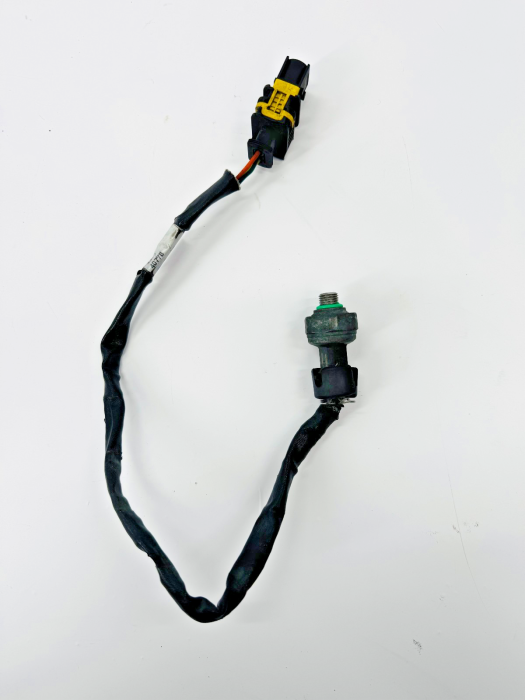

This listing is for a used genuine Volvo air conditioning (A/C) refrigerant pressure sensor with wiring lead, OEM reference 21065047 (Volvo/Renault cross 742106507). The part consists of a screw-on pressure transducer for the high pressure side of the A/C circuit and an attached loom terminating in a 3-pin female connector with yellow secondary locking tab, exactly as shown in the photos. It is designed for 24V commercial vehicle HVAC systems.

The sensor is used on a wide range of Volvo heavy trucks, including FH12, FH13, FH16 and FM9/FM12/FM13 models around Euro 5 and early Euro 6, and on some Renault heavy trucks sharing the same platform. It monitors the high side refrigerant pressure in the A/C system and sends a signal to the climate control ECU to protect the compressor and optimise cooling performance. A faulty pressure sensor can cause the compressor not to engage, poor cooling, or A/C warning messages, so replacing it with a correct OEM unit is essential.

Our part was removed from a running Volvo FH truck and the A/C function was checked before dismantling; no DTCs were present and the compressor cycled correctly. After removal the sensor and loom were visually inspected for damage and cleaned. The metal housing shows normal corrosion from age but no cracks or leaks, and the connector housing and secondary lock are intact. The loom insulation is complete with no cuts or taped repairs. The original O-ring is still fitted but we advise installing a new seal and evacuating/recharging the A/C system to the manufacturer’s specification after replacement.

Installation should be carried out by a qualified technician, as the A/C system must be safely depressurised, leak-checked and re-gassed. In most cases no programming or coding is required when replacing this sensor on Volvo FH/FM trucks; it is a direct plug-and-play component, but always follow the official Volvo workshop manual procedures.

Key features and technical details:
- Genuine Volvo A/C refrigerant pressure sensor
- OEM references: Volvo 21065047, Volvo/Renault 742106507
- Common aftermarket crosses: Cojali 20400042, NRF 21065047, Febi 21065047, Auger 21065047
- Application: Volvo FH12/FH13/FH16, FM9/FM12/FM13 and related Renault heavy trucks (Euro 5/6, 24V systems)
- Function: monitors A/C high side pressure and controls compressor operation
- Construction: metal sensor body with screw-on port and green O-ring, plastic 3-pin connector with yellow secondary lock, insulated loom
- Placement: front of vehicle, engine bay A/C high pressure line or receiver-drier assembly
- Electrical system: 24V commercial vehicle
- Condition: used, tested on vehicle before dismantling, Grade B with normal cosmetic wear only
- Included: sensor unit complete with attached wiring harness as pictured

Please match the part number 21065047 (and cross 742106507) with your existing sensor and confirm compatibility with your Volvo FH/FM or Renault truck before ordering. Photos form part of the description; you will receive the exact item shown.
