MAN TGX Radiator Hose Cooling Pipe 81963050466 81.96305-0466 Euro 5/6 Hoses, Clamps & Fittings

Description:

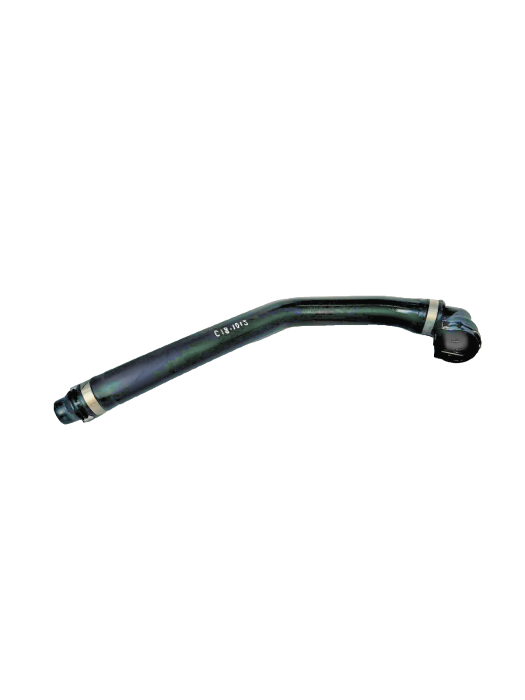

This listing is for a used genuine MAN radiator hose / coolant hose line for MAN TGX and TGS trucks. The hose is a shaped EPDM rubber pipe with quick‑release plastic connectors on each end, used in the engine cooling circuit between the radiator and engine. The original MAN moulded number on the part is 81.96305-0466, which corresponds to OE 81963050466 as confirmed by multiple truck parts catalogues and aftermarket references.

The hose features a formed 90° elbow connector (NORMA‑RSS NQPS8 NW26‑90°) on one side and a straight quick‑connect on the other, with factory‑crimped metal bands securing the rubber to the fittings. Catalogue data for Thermotec SI‑MA48 and Auger 83604, both listed as replacements for MAN 81963050466, give typical dimensions of approx. 580 mm length with 26 mm and 40 mm internal diameters, matching the appearance of this item.

Compatibility (to be checked by buyer):
Confirmed applications in online catalogues show this hose used on many MAN TGX and some TGS models with D20 and D26 engines, Euro 5 and Euro 6 emission standards, from around 2007 onwards. Example listings include TGX 18.360, 18.400, 18.440, 18.480, 18.540 and related variants. Please always verify by matching your existing part number (81963050466 / 81.96305-0466) and shape against the photos, or by checking with a MAN parts catalogue or dealer before purchase, as cooling layouts may vary by chassis and engine.

Technical details:
- Brand: MAN (OE)
- OE numbers: 81963050466, 81.96305-0466
- Cross references: Auger 83604, Thermotec SI-MA48, Sampa 023.427 / 13631
- Type: Radiator / engine coolant hose line with quick connectors
- Material: EPDM rubber hose with plastic connectors and metal bands
- Approx. dimensions: length 580 mm, ID 26 mm / 40 mm (per aftermarket specs)
- Colour: black
- Location: engine bay, radiator coolant circuit
- Country of origin: Germany (MAN and Auger data show production for MAN applications in Germany).

Condition:
This is a used take‑off part from a dismantled MAN TGX/TGS. Before removal, the cooling system was run up to temperature and checked; the hose showed no leaks, bulging or overheating issues. After removal it was visually inspected, and no cracks, deep abrasions or damage to the connectors were found. Only light cosmetic marks from normal service and handling are present. Rubber remains supple and the quick‑connect clips lock correctly. Supplied exactly as shown in the photos, without new O‑rings or extra fittings, so you may wish to install new seals during fitting. Item is graded B – used with minor cosmetic wear but in full working order.

Installation notes:
Direct replacement for the original hose with part number 81963050466 / 81.96305-0466. Professional installation is recommended to ensure correct routing, clip engagement and bleeding of the cooling system. After fitting, refill with the correct coolant mixture specified by MAN, bleed the system and check for leaks with the engine at operating temperature. No programming or electronic coding is required, but the system must be pressure‑tested after installation.
