MAN TGA/TGX Air Tank 35L 12.5 Bar 81514016156 81514010274 4044407388954 Air Tanks

Description:

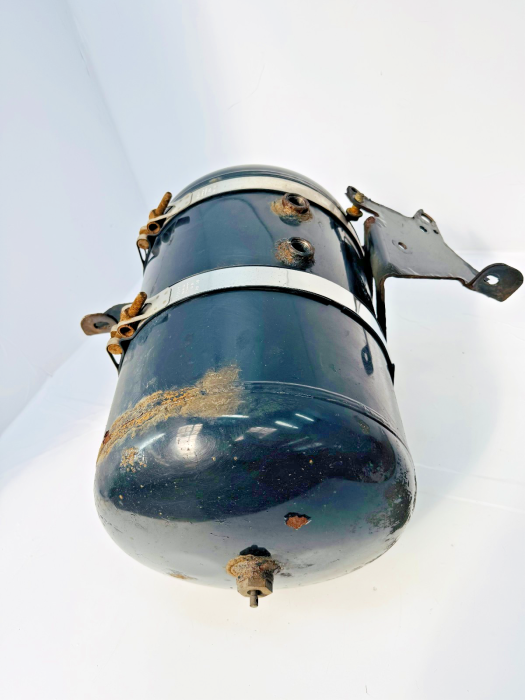

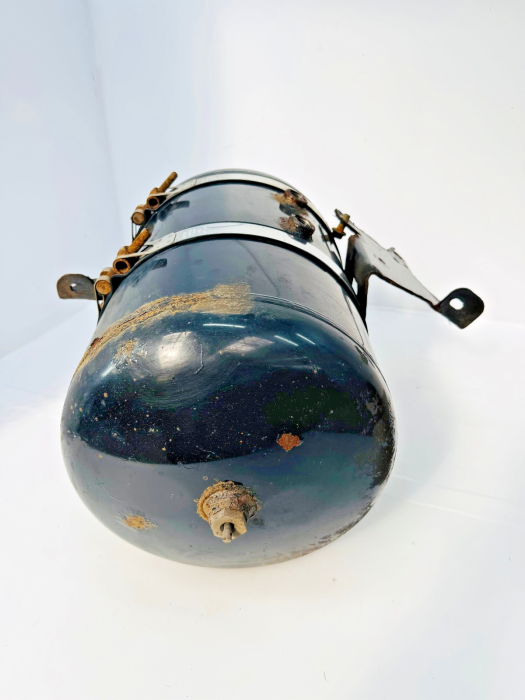

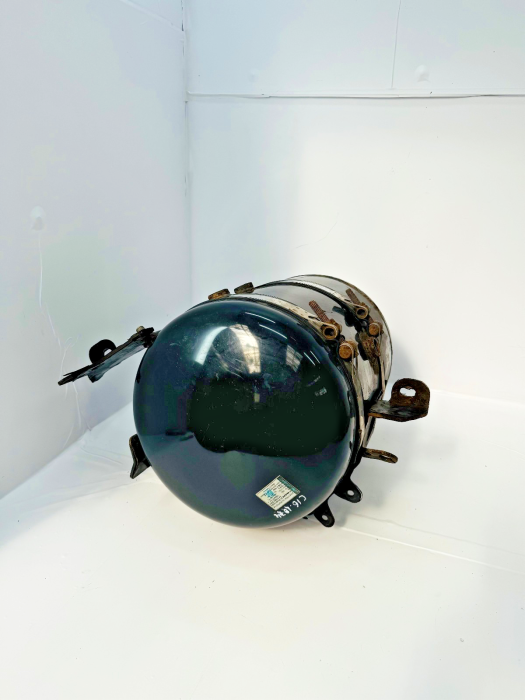

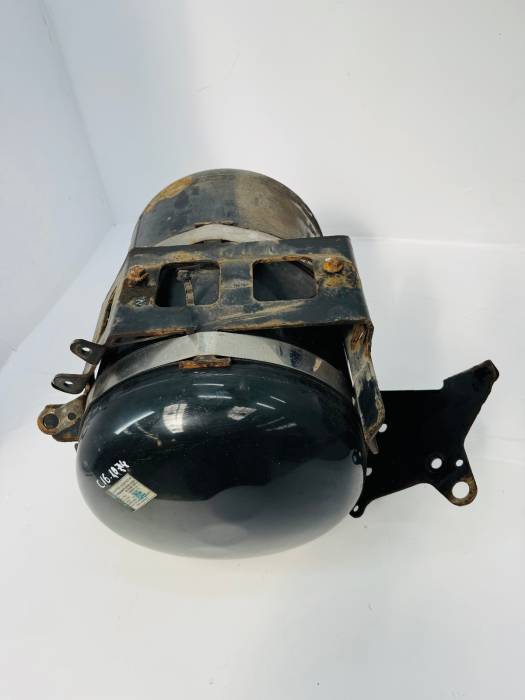

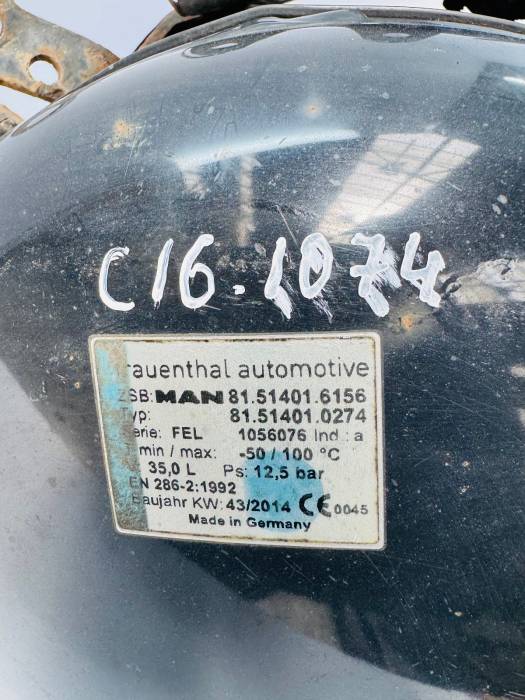

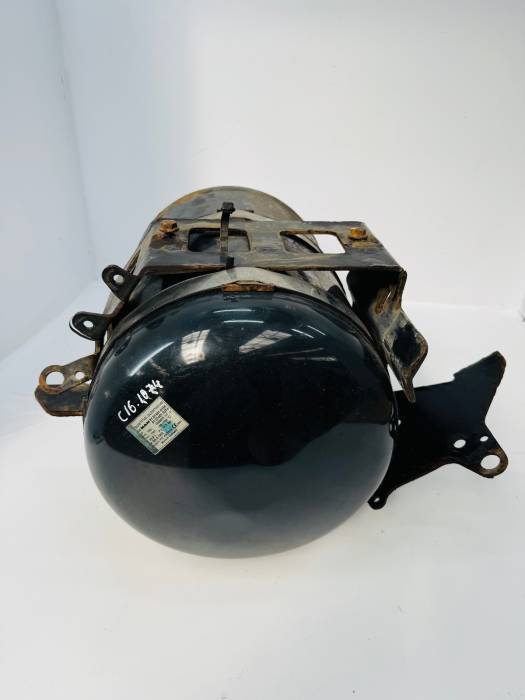

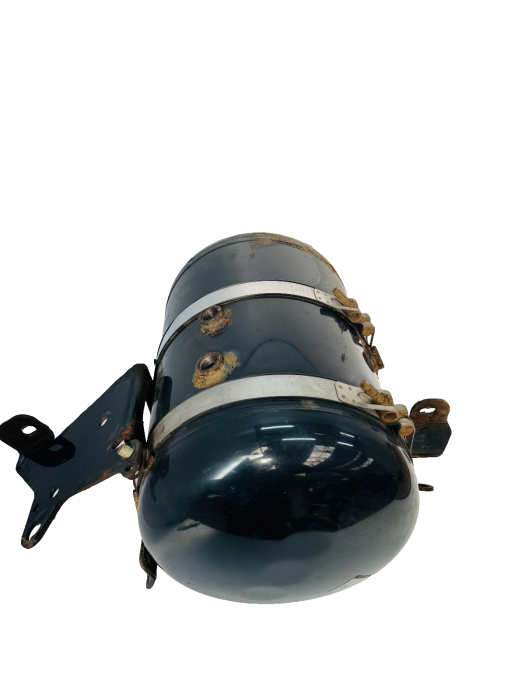

This listing is for a used genuine MAN compressed air tank / air reservoir with 35 litre capacity for the chassis pneumatic and braking system. The tank label identifies MAN OE numbers 81.51401.6156 and 81.51401.0274 with 35.0L volume, 12.5 bar working pressure and operating temperature range from -50°C to +100°C, manufactured by Rauen­thal Automotive in Germany. The tank is black painted steel with welded domed ends, multiple threaded ports on the cylinder body and a drain plug on the end cap. It is supplied complete with the original mounting straps and side bracket as shown.

This air tank is typically fitted to MAN TGA, TGS and TGX trucks with 35L chassis air reservoirs and is suitable for use in the compressed-air system for service brakes, parking brake and auxiliary pneumatic consumers. Cross-reference aftermarket numbers include PN-AT167 and PE Automotive 036.376-80A / 036.376-00A, often catalogued against MAN OE 81.51401.6156 and aftermarket reference 81514016156.

The part was tested on the vehicle prior to dismantling to confirm it charged correctly and held pressure without leaks. After removal it was drained and inspected; only normal external wear, paint flaking and surface rust are present, with no evident structural damage to the shell. Due to age and previous use we recommend the buyer carries out an additional pressure and leak test plus surface preparation and repainting before installation.

Technical details:
– Brand: MAN, Rauen­thal Automotive
– Type: compressed air tank / reservoir 35L
– Capacity: 35.0 litres
– Working pressure: 12.5 bar
– Temperature range: -50°C to +100°C
– Material: steel, black painted
– Approx. dimensions: 310mm diameter, 529mm length
– Ports: 4 threaded air connections on body plus drain plug
– Country of manufacture: Germany
– Mounting: chassis-mounted with steel straps and bracket (included)

Compatibility should be checked by matching the OE numbers 81.51401.6156 / 81.51401.0274 / 81514016156 and dimensions with your existing tank and by consulting a MAN parts catalogue or dealer. This item is intended for commercial vehicles and is suitable for Euro 4/5/6 MAN TGA, TGS and TGX models that use a 35L 12.5 bar air reservoir.
