MAN TGA/TGS/TGX Exhaust Brake Stalk Switch 81255090157 81255090150 Euro 5/6 Brake Sensors & Switches

Description:
Genuine MAN steering column exhaust brake stalk switch for heavy commercial vehicles. This lever mounts on the steering column inside the cab and is used by the driver to control the engine/exhaust brake function. The part corresponds to MAN OE numbers 81.25509-0157 and 81255090157, with known equivalent references 81255090150, Febi Bilstein 101835 and Stellox 8807807SX. Catalogues and aftermarket listings describe this component as a Lenkstockhebelschalter / stalk switch for exhaust brake, suitable for a wide range of MAN trucks including TGA, TGL, TGM, TGS and TGX models with Euro 4, Euro 5 and Euro 6 engines.

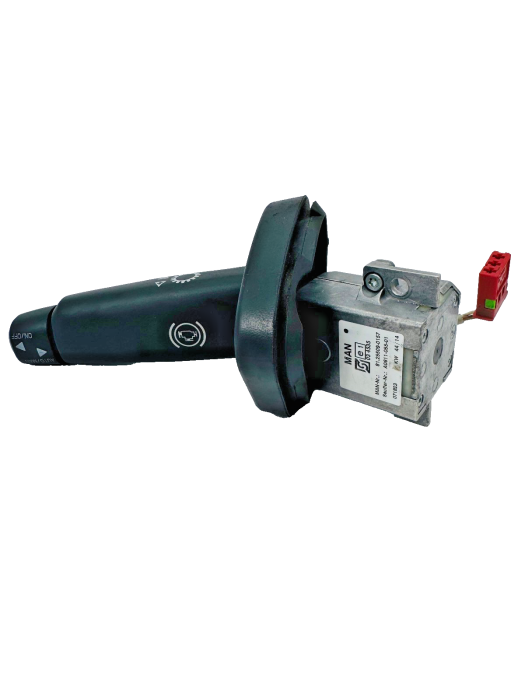

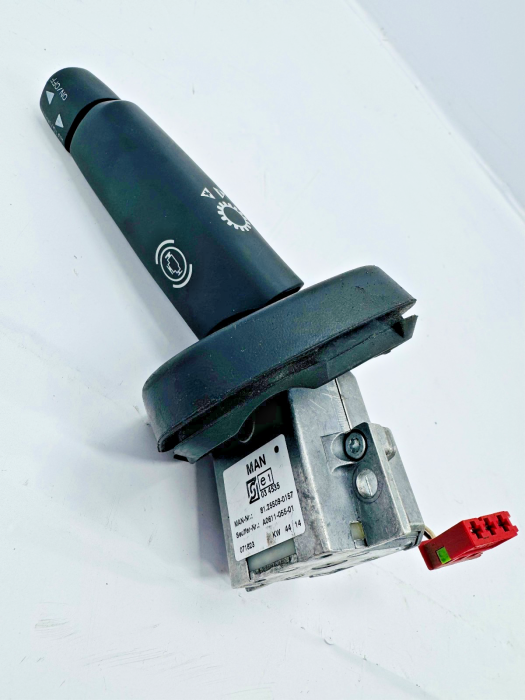

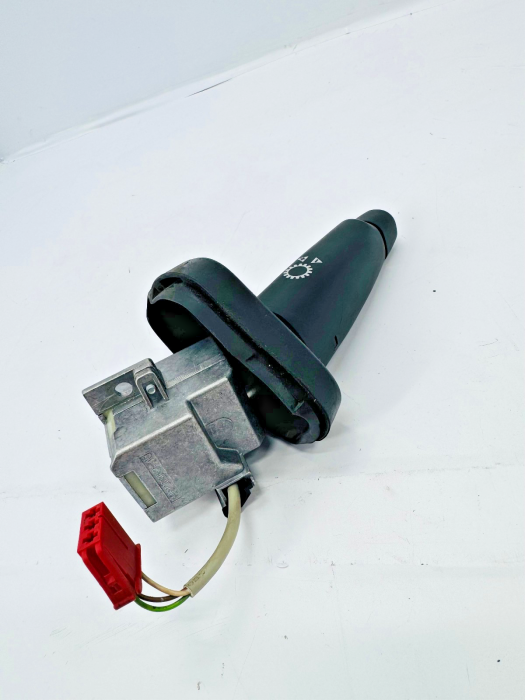

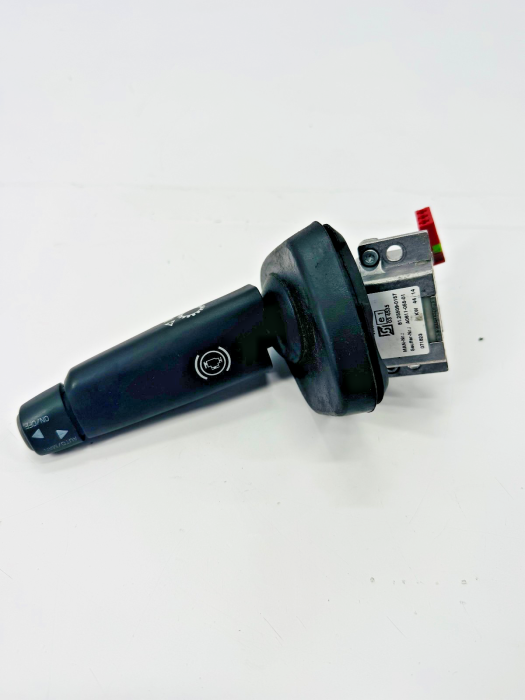

The switch features a black plastic lever with exhaust brake symbol and ON/OFF arrows, mounted to a robust cast metal base and sealed to the column with a rubber collar. A short wiring tail with 3-pin red connector provides simple plug-in connection to the vehicle harness. Application data from specialist truck parts suppliers confirms use on multiple MAN platforms: TGA long-haul tractors, TGL distribution trucks, TGM middleweight chassis, and TGS/TGX heavy tractor units.

Our used unit was removed from a fully operational truck and the exhaust brake function was checked on the vehicle prior to dismantling. After removal the part underwent visual inspection and basic electrical continuity checks. There are minor cosmetic signs of use on the stalk and housing but no cracks, breaks or missing pieces. The connector and wiring are intact and free from corrosion. This makes it a cost‑effective replacement when the original stalk is intermittent, broken or damaged.

Technical details and features (based on catalog and visual check):
- Brand: MAN (genuine OE)
- Manufacturer Part Number: 81.25509-0157 / 81255090157
- Cross references: 81255090150, Febi Bilstein 101835, Stellox 8807807SX
- Type: Steering column exhaust brake stalk switch
- Voltage: 24 V truck electrical system
- Connector: 3-pin red plug with short loom
- Approx. weight: 0.24 kg
- Placement: Interior, steering column
- Country of manufacture: Germany (MAN / Febi Bilstein production and catalog data)

Compatibility:
Typically fitted to MAN TGA, TGL, TGM, TGS and TGX trucks from approximately 2004 onwards, including many Euro 4, Euro 5 and Euro 6 variants. Detailed catalogues list numerous model codes such as TGA 18.xx / 26.xx, TGL 7.xx / 12.xx, TGM 13.xx / 18.xx, TGS 18.xx / 26.xx / 33.xx / 41.xx and TGX 18.xx / 24.xx / 26.xx / 33.xx. Always check the part number on your original switch and confirm against your chassis/VIN with a MAN dealer or parts specialist before purchase.

Installation notes:
Direct replacement for the original exhaust brake stalk; usually no coding is required when refitting like‑for‑like part numbers, but we recommend installation by a qualified commercial vehicle technician. Ensure the ignition is off and battery isolated before working on steering column electrics. After installation, verify correct exhaust brake operation and that no warning lamps are displayed.

Warranty & returns:
This used MAN exhaust brake stalk switch is supplied with a 3‑month warranty covering proper operation under normal use. Item was checked on the vehicle before dismantling and inspected again prior to dispatch. Returns are accepted within 30 days if the part is not as described or not required, provided it is returned in the same condition and security marks remain intact.

Shipping & Returns:
We ship across UK/EU with tracked services. Returns accepted within 30 days; buyer pays return postage. Please inspect upon arrival and message us with any concerns.

Why Buy From Us:
Genuine part, 3-month warranty, fast dispatch, secure packaging.
