MAN TGA/TGL/TGM/TGX Door Hinge Lower Left 81626906063 81.62690-6063 Cab Doors & Hardware

Description:

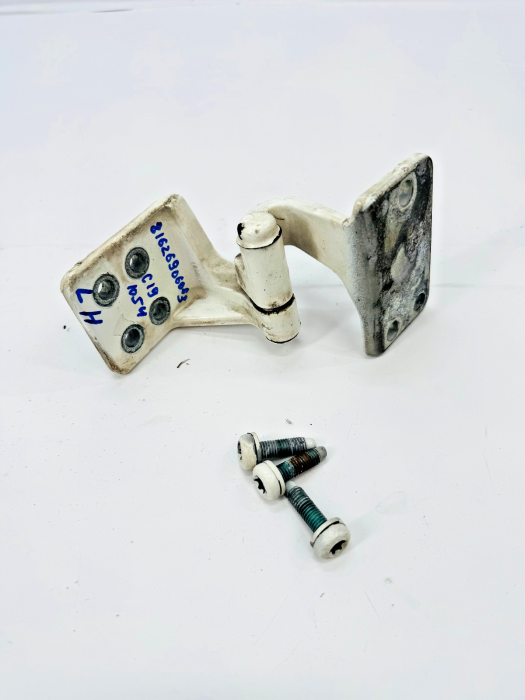

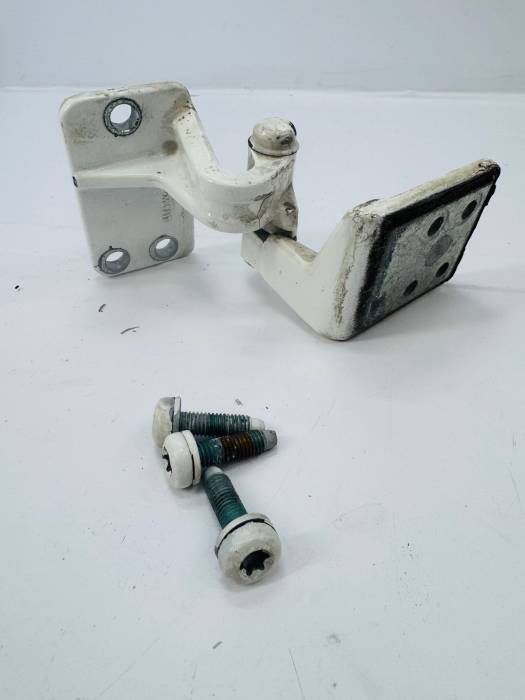

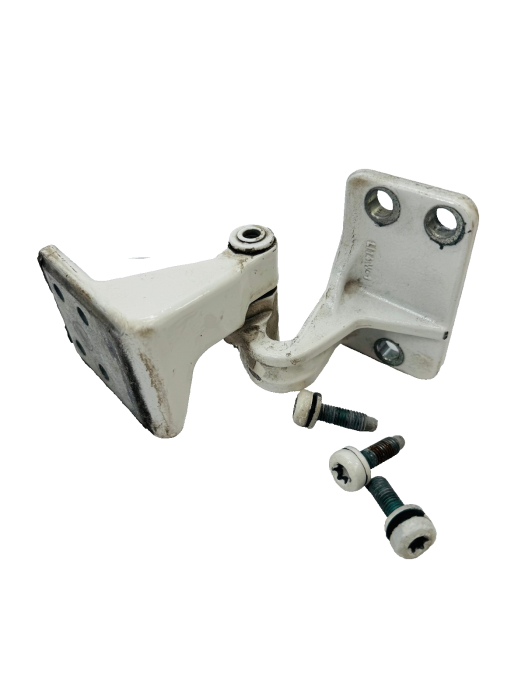

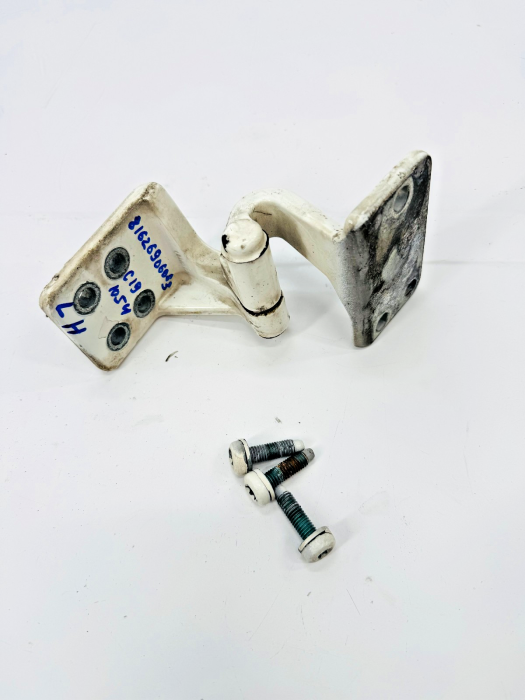

Genuine MAN lower left cab door hinge for TGA, TGL, TGM, TGX and TGS trucks. This hinge carries OE references 81626906063 and 81.62690-6063 and is used on the driver side lower position to support and guide the cab door. It is a heavy‑duty steel hinge with two four‑bolt mounting plates and an integrated pivot pin, finished in white paint to match the cab. The design and mounting hole pattern correspond to the standard MAN cab door construction used across multiple platforms.

The hinge was removed from a running MAN vehicle and checked for correct operation before dismantling. The door opened and closed smoothly without sticking, and there was no excessive vertical play at the hinge point. After removal the part was visually inspected for cracks, distortion and thread damage. Only cosmetic wear is present: road dirt, staining and surface corrosion on the unpainted contact surfaces and light paint chipping around the edges. The pivot remains tight and moves freely. The item has been lightly cleaned but not repainted, so buyers can see the true used condition.

This listing includes the hinge assembly and four original mounting bolts with integrated washers and sealing rings as shown in the photos. It is intended as a direct replacement for a bent, seized or worn lower left door hinge on MAN TGA, TGL, TGM, TGX and TGS cabs. No programming or calibration is required; however, professional fitting is recommended to ensure correct door alignment and to avoid stress on the cab structure. After installation the door gaps and latch engagement should be adjusted according to MAN workshop procedures.

Technical details and features (based on MAN and aftermarket catalogues):
- OE numbers: 81626906063, 81.62690-6063 (door hinge lower left)
- Other interchangeable references used by various suppliers: 81626906055, 81626906053, 81626906045, 81626906061 and formatted numbers 81.62690.6055, 81.62690.6053, 81.62690.6045, 81.62690.6061
- Application: MAN TGA, TGL, TGM, TGX, TGS cab doors (driver side, lower hinge)
- Material: metal/steel construction, painted white
- Approximate weight around 1.1–1.2 kg as per new part listings
- Country of origin: MAN truck components are manufactured in Germany; most catalogues list this hinge as a MAN OE or European aftermarket production

Compatibility:
According to MAN parts catalogues and multiple aftermarket suppliers, OE 81626906063 fits a wide range of MAN heavy commercial vehicles, mainly:
- MAN TGA (various cab variants)
- MAN TGL
- MAN TGM
- MAN TGX
- MAN TGS
Fitment is on the left‑hand (UK passenger side / continental driver side) front cab door in the lower hinge position. Always cross‑check the OE number 81626906063 or 81.62690-6063 against your existing hinge or chassis number before purchase to confirm compatibility.

Condition and grading:
This is a used original hinge graded as B: fully functional with moderate cosmetic wear. There is visible dirt, staining and light surface rust on the mounting faces and paint wear on exposed edges, but no crack, weld repair or distortion has been observed. Pivot pin and bush are in serviceable condition. The part was tested on the truck prior to removal and cleaned after dismantling.

Installation notes:
Direct mechanical replacement for the original hinge. Support the door safely before removing hinges, then install the replacement hinge using the supplied bolts or new hardware where required. Door alignment and closing effort should be checked and adjusted after fitting. Lubricate the hinge pivot following MAN service recommendations to maximise life.

Warranty and returns:
This used MAN hinge is supplied with a 3‑month warranty against functional defects from the date of purchase. Returns are accepted within 30 days of delivery if the part is not as described or ordered in error, provided it is returned in the same condition as shipped.
