MAN TGA/TGL/TGM/TGS/TGX Upper Door Hinge 81626906049 81626906031 LH Euro 6 Grab Handles

Description:
Genuine MAN upper front cab door hinge for the left-hand (driver) side, suitable for TGA, TGL, TGM, TGS and TGX trucks. This hinge assembly carries OE reference 81626906049 / 81.62690-6049 and is used to support and guide the upper part of the front cab door. Design and mounting layout correspond to the standard MAN hinge used across TG-series cabs including Euro 4, Euro 5 and Euro 6 models.

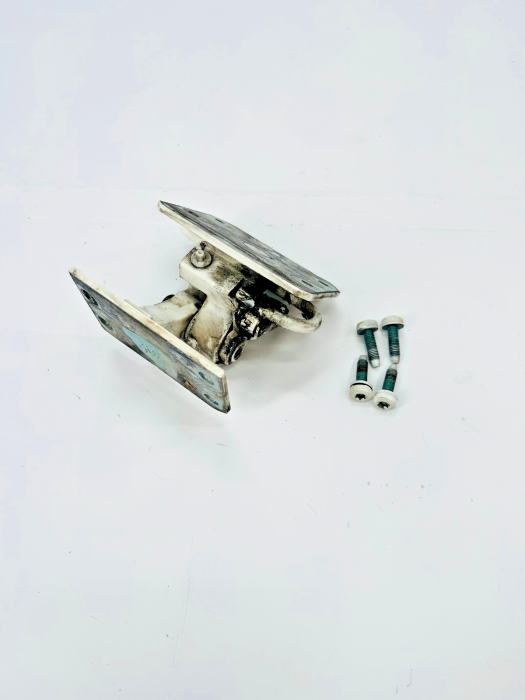

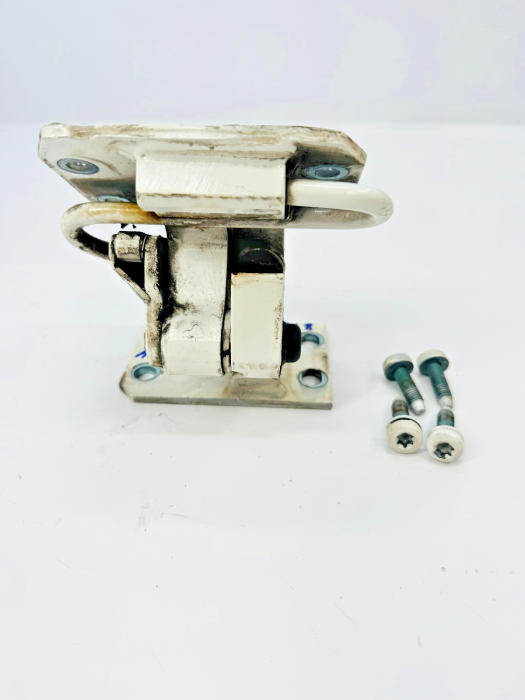

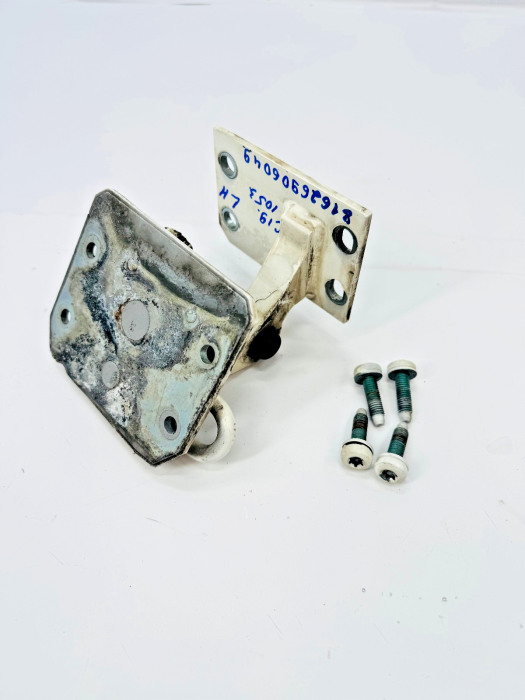

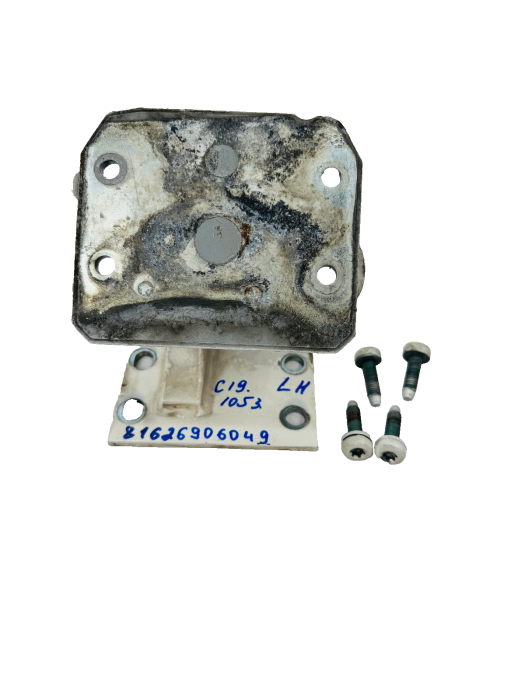

The hinge consists of a robust steel body with two fixing plates, welded arm and integrated loop, painted white from previous vehicle application. It is designed for heavy-duty commercial use and maintains correct door alignment and smooth opening. The part on offer is a used original hinge with 4 matching mounting bolts included.

Compatibility (based on MAN and aftermarket catalogues and cross-references):
- MAN TGA (all cab variants)
- MAN TGL (Euro 4–Euro 6)
- MAN TGM (Euro 4–Euro 6)
- MAN TGS (including TGS Euro 6)
- MAN TGX (including TGX Euro 6)
Always verify by OE number 81626906049 / 81.62690-6049 and by comparing the shape and bolt pattern with your existing hinge.

Technical details & features:
- Brand: MAN (OE)
- Type: Upper front cab door hinge, left-hand side
- OE/MPN: 81626906049, 81.62690-6049
- Cross numbers: 81626906031, 81626906033, 81626906035, 81626906037, 81626906047, 81626906051, 81626905005, VW 2V5831401, PACOL MAN-DH-010L, AUGER 83203, COVIND MLX/7, DT 3.85124, SAMPA 18200318, SIEGEL SA2F0064, STELLOX 87-55408-SX, LAMIRO 330-40EX
- Placement on vehicle: Front door, upper hinge, left (LH) side
- Material: Steel/metal construction
- Colour: White painted body with bare metal contact faces
- Approximate dimensions: around 15 x 14.5 x 10.5 cm overall size
- Approximate weight: 2.0–2.2 kg
- Country of manufacture: Germany (MAN OE production for cab body parts)
- Included: Complete hinge assembly with 4 mounting bolts

Condition:
Used Grade B. The hinge shows normal working marks, paint chipping and surface corrosion on exposed areas but is structurally sound. Pivot functions correctly with no obvious excessive play. The part was tested on the vehicle before dismantling to confirm correct door operation. After removal, it was inspected, lightly cleaned and lubricated. Ideal cost‑effective replacement for a worn or damaged hinge on MAN TGA/TGL/TGM/TGS/TGX trucks.

Installation notes:
Professional installation is recommended. The hinge mounts directly to the cab and door using the supplied bolts; alignment of the door may require adjustment after fitting. No programming or electrical coding is required as this is a purely mechanical component. For best results, grease the pivot during installation and check that the door closes smoothly without sagging.

Warranty & returns:
Genuine used MAN part supplied with a 3‑month warranty against mechanical defects. Please ensure the OE reference and photos match your old part before ordering. Returns are accepted within 30 days; buyer is responsible for return postage.
