DAF XF/CF Tag Axle Lift Bracket Assembly 1911884 1925364 1998838 1906945 Rear Other Suspension & Steering

Description:

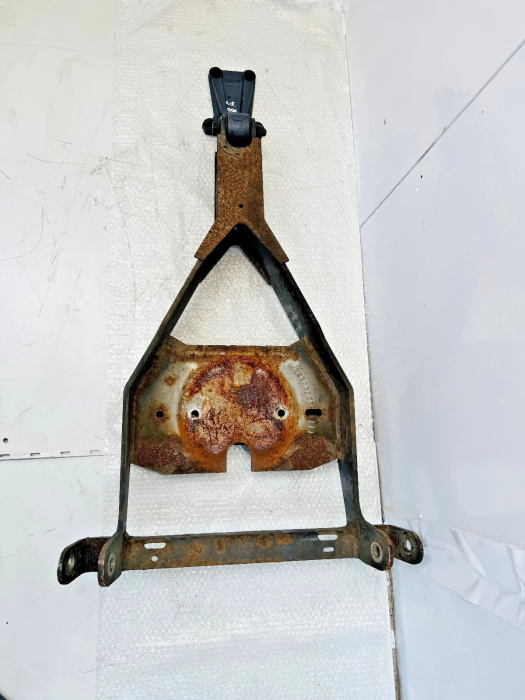

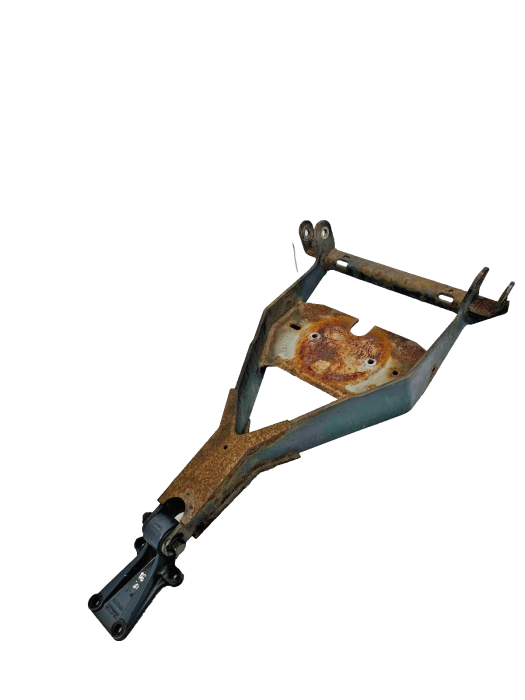

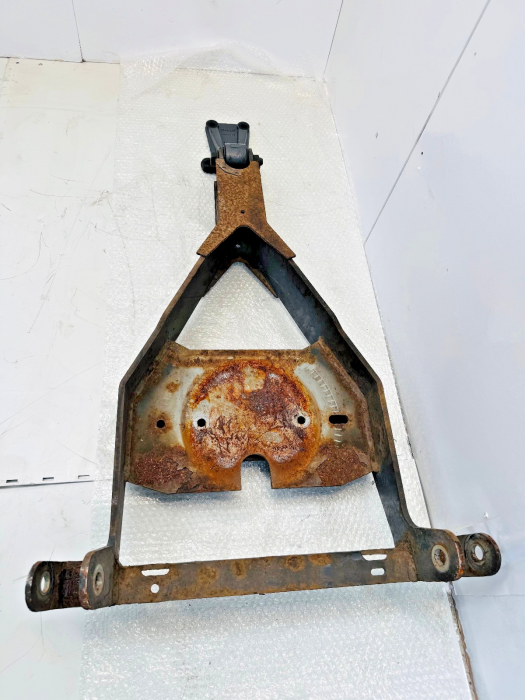

Genuine DAF trailing tag axle lift bracket assembly suitable for Euro 6 DAF XF106 and CF series trucks fitted with a rear lifting (tag) axle. This large steel bracket forms the main support for the lifting mechanism of the secondary axle and mounts to the chassis at the rear. The part includes the heavy cast front pivot arm with bonded bush, pressed steel tray and rear cross‑tube with mounting eyes.

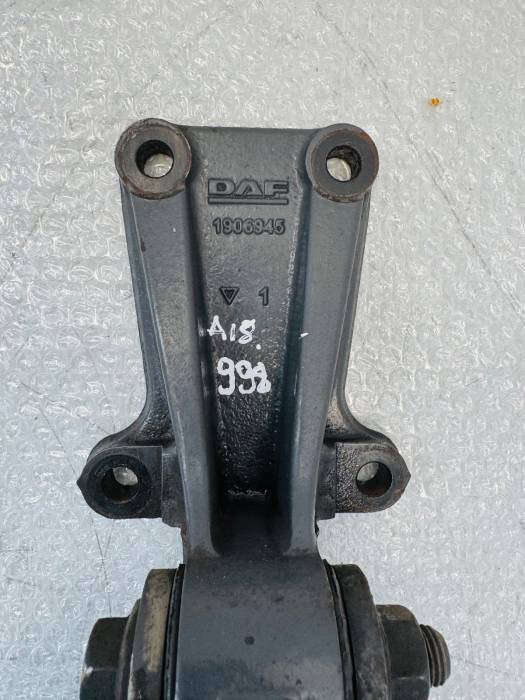

The casting on the pivot arm is clearly marked with the DAF logo and part number 1906945. In DAF parts catalogues and current online listings this casting is used within the complete tag axle lifting bracket assemblies referenced under OE numbers 1911884, 1925364 and 1998838, often sold under stock code DEM#1888978 for DAF CF/XF Euro 6 trailing axles. These assemblies are described by commercial vehicle dismantlers and parts dealers as "bracket trailing axle lifting mechanism" or "pivot de ridicare axă secundară" for DAF CF/XF models, confirming the application to the rear tag axle lifting system.

This used bracket was removed from a running Euro 6 DAF tractor unit and the lifting function was checked on the vehicle before dismantling to confirm it operated correctly with no abnormal movement. After removal the part has been visually inspected; there is extensive surface rust on the pressed steel sections and mounting plate, typical for an exposed chassis part, but the steel remains structurally sound and suitable for refurbishment. The cast pivot arm and bush area present normal wear with no visible cracks or weld repairs. All mounting eyes and chassis bolt holes are present and undamaged.

Typical applications include DAF XF106 and CF Euro 6 4x2 and 6x2 tractor units equipped with a rear tag axle and factory lifting mechanism using OE numbers 1911884, 1925364, 1998838 and associated casting 1906945. Please check your existing part number, vehicle specification and axle type before ordering. If in doubt, compare the photos and shape of the bracket with the unit on your truck.

As with all suspension and axle components, fitting should be carried out by a qualified commercial vehicle workshop. The bracket bolts to the chassis and interfaces with the lifting cylinder and linkages; after installation, correct alignment and torque settings must be observed and the axle lifting operation should be tested for full up/down travel and secure locking.

This is a genuine used DAF component, not a pattern copy. It offers a cost‑effective solution versus a new bracket assembly from the dealer and is ideal where the original bracket has suffered impact damage or severe corrosion. The item was fully operational before dismantling and has been checked again on the bench, but detailed cleaning, derusting and painting are recommended prior to service.

Warranty is 3 months against mechanical failure, and returns are accepted within 30 days subject to our standard terms. Please see the photos for the exact condition and configuration and contact us if you require additional measurements or compatibility checks.

Shipping & Returns:
We ship across UK/EU with tracked services. Returns accepted within 30 days; buyer pays return postage. Please inspect upon arrival and message us with any concerns.

Why Buy From Us:
Genuine part, 3-month warranty, fast dispatch, secure packaging.
